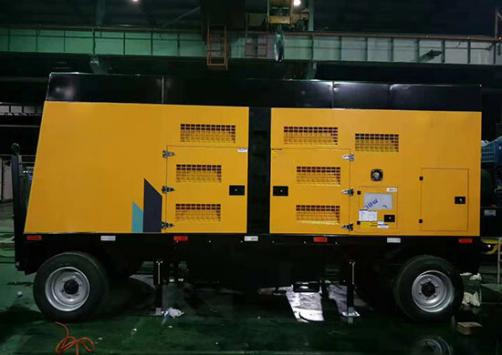

THTP PERKINS Powered Trailer
Power Range: 7kW-520kW
Engine: PERKINS
Alternator: MARATHON,ABB,STAMFORD,TELLHOW -
THTP PERKINS Powered Trailer
Power Range: 7kW-520kW
Engine: PERKINS
Alternator: MARATHON,ABB,STAMFORD,TELLHOW
Split Type-Perkins Powered Trailer
Split Type-Perkins Powered Trailer:
Contact Us:
-
1. THT-trailer mounted genset is equipped with a rain-proof and soundproof housing, a complete air intake and exhaust system, as well as a water drainage system. This enables it to operate under all-weather conditions.
-
2. Doors can be opened at two sides of the generator set, which ensures convenient operation and maintenance. Upon request, the door can be locked to keep safe.
-
3. Users can freely choose either singe axle or double axle trailer to be used.
-
4. Built-in oil tank can assure 12 hours continuous operation of the genset.
-
5. Users can supervise the condition of the control panel at any time through the observable window.
-
6. According to customers'requirements, the genset can be equipped additionally with cable drum, cable jumper or other parts.
-
Non-Road transport version
-
The standard of Non-Road transport version: Without Taillight and Taillight harness.
-
The chassis of Non-Road transport version: Without Adjustable height traction bar and Service brake system,etc.
-
Road transport version：
-
The total standard of Road transport version: Mechanical support leg, Guide pulley, Fender, Taillight and Taillight harness.
-
The chassis of Road transport version: Axle, Adjustable height traction bar, Parking brake system and Service brake system,etc.
|
Generator set model |
Prime power |
Engine model |
Generator model |
Dimensions of genset L*W*H |
Fuel tank volume |
Structure |
Applicable |
Trailer Model |
|
|
KVA |
KW |
mm |
L |
||||||
|
THTP7PM |
9 |
7 |
403A-11G1 |
GM-8.6-4 |
3250X1550X1850 |
100 |
A |
Non-road transport version |
YEA1200 |
|
THTP10PM |
13 |
10 |
403A-15G1 |
GM-12-4 |
3250X1550X1850 |
100 |
A |
Non-road transport version |
YEA1200 |
|
THTP16PM |
20 |
16 |
404A-22G 1 |
GM-16-4 |
3250X1575X2000 |
100 |
A |
Non-road transport version |
YEA1500 |
|
THTP24PM |
30 |
24 |
1103A-33G |
GM-24-4 |
4100X1700X2350 |
180 |
A |
Non-road transport version |
YEA1800 |
|
THTP30PM |
38 |
30 |
1103A-33TG1 |
MP-32-4 |
4100X1700X2350 |
180 |
A |
Non-road transport version |
YEA1800 |
|
THTP36PM |
45 |
36 |
1103A-33TG1 |
MP-40-4 |
4100X1700X2350 |
180 |
A |
Non-road transport version |
YEA1800 |
|
THTP48PM |
60 |
48 |
1103A-33TG2 |
MP-48-4 |
4100X1700X2350 |
180 |
A |
Non-road transport version |
YEA1800 |
|
THTP50PM |
63 |
50 |
1104A-44TAG1 |
MP-50-4 |
4300X1700X2450 |
180 |
A |
Non-road transport version |
YEA2500 |
|
THTP64PM |
80 |
64 |
1104A-44TAG2 |
MP-64-4 |
4300X1700X2450 |
180 |
A |
Non-road transport version |
YEA2500 |
|
THTP80PM |
100 |
80 |
1104C-44TAG2 |
MP-80-4 |
4300X1700X2450 |
180 |
A |
Non-road transport version |
YEA2500 |
|
THTP108PM |
135 |
108 |
1106A-70TG1 |
MP-128-4A |
4950X1850X2450 |
300 |
B |
Non-road transport version |
YEA3000 |
|
THTP120PM |
150 |
120 |
1106A-70TAG2 |
MP-128-4A |
4950X1850X2450 |
300 |
B |
Non-road transport version |
YEA3000 |
|
THTP140PM |
175 |
140 |
1106A-70TAG3 |
MP-140-4A |
4950X1850X2475 |
300 |
B |
Non-road transport version |
YEA3500 |
|
THTP160PM |
200 |
160 |
1106A-70TAG4 |
MP-160-4A |
4950X1850X2475 |
300 |
B |
Non-road transport version |
YEA3500 |
|
Generator set model |
Prime power |
Engine model |
Generator model |
Dimensions of genset L*W*H |
Fuel tank volume |
Structure |
Applicable |
Trailer Model |
|
|
KVA |
KW |
mm |
L |
||||||
|
THTP7PM |
9 |
7 |
403A-11G1 |
GM-8.6-4 |
3200X1550X1850 |
130 |
A |
Road transport version |
EA1200 |
|
THTP10PM |
13 |
10 |
403A-15G1 |
GM-12-4 |
3200X1550X1850 |
130 |
A |
Road transport version |
EA1200 |
|
THTP16PM |
20 |
16 |
404A-22G1 |
GM-16-4 |
3200X1575X2000 |
130 |
A |
Road transport version |
EA1500 |
|
THTP24PM |
30 |
24 |
1103A-33G |
GM-24-4 |
4000X1700X2350 |
180 |
A |
Road transport version |
EA1800 |
|
THTP30PM |
38 |
30 |
1103A-33TG1 |
MP-32-4 |
4000X1700X2350 |
180 |
A |
Road transport version |
EA1800 |
|
THTP36PM |
45 |
36 |
1103A-33TG1 |
MP-40-4 |
4000X1700X2350 |
180 |
A |
Road transport version |
EA1800 |
|
THTP48PM |
60 |
48 |
1103A-33TG2 |
MP-48-4 |
4000X1700X2350 |
180 |
A |
Road transport version |
EA1800 |
|
THTP50PM |
63 |
50 |
1104A-44TAG1 |
MP-50-4 |
4200X1700X2450 |
180 |
A |
Road transport version |
EA2500 |
|
THTP64PM |
80 |
64 |
1104A-44TAG2 |
MP-64-4 |
4200X1700X2450 |
180 |
A |
Road transport version |
EA2500 |
|
THTP80PM |
100 |
80 |
1104C-44TAG2 |
MP-80-4 |
4200X1700X2450 |
180 |
A |
Road transport version |
EA2500 |
|
THTP108PM |
135 |
108 |
1106A-70TG1 |
MP-128-4A |
4800X1850X2450 |
300 |
B |
Road transport version |
EA3000 |
|
THTP120PM |
150 |
120 |
1106A-70TAG2 |
MP-128-4A |
4800X1850X2450 |
300 |
B |
Road transport version |
EA3000 |
|
THTP140PM |
175 |
140 |
1106A-70TAG3 |
MP-140-4A |
4800X1850X2475 |
300 |
B |
Road transport version |
EA3500 |
|
THTP160PM |
200 |
160 |
1106A-70TAG4 |
MP-160-4A |
4800X1850X2475 |
300 |
B |
Road transport version |
EA3500 |
