THLV（Volvo）50Hz/60Hz

Home - Products - Diesel Generator Sets - Open Type Generator Sets - THLV（Volvo）50Hz/60Hz

THLV（Volvo）50Hz/60Hz:

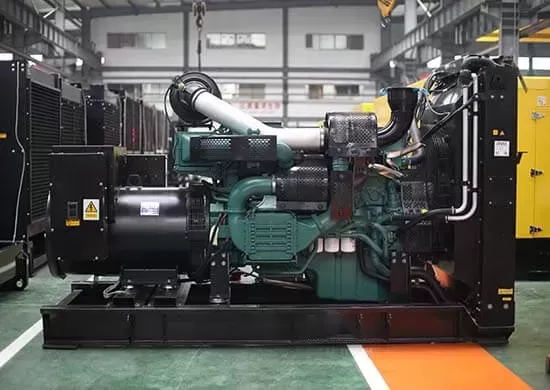

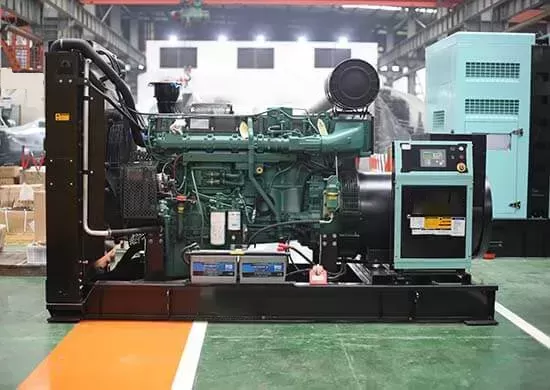

THLV VOLVO Powered Generator Sets
Power Range: 69kW-520kW
Engine: Volvo (Sweden)
Alternator: MARATHON,ABB,STAMFORD,TELLHOW
Frequency: 50Hz/60Hz
The generator set comes with VOLVO PENTA (Sweden) engine, with quick and reliable cold start performance, applying advanced optimized combustion process, reduced running expense of continuous load. Optimal designed damper, accurately matched supercharger and low speed cooling fan reduced the noise during gen-set running, and the emission index meets EU Stage-2 Standard.

Share products:

The generator set comes with VOLVO PENTA (Sweden) engine, with quick and reliable cold start performance, applying advanced optimized combustion process, reduced running expense of continuous load. Optimal designed damper, accurately matched supercharger and low speed cooling fan reduced the noise during gen-set running, and the emission index meets EU Stage-2 Standard.
We choose VOLVO(Sweden) industrial engine,which enjoys quick and reliable cold start performance.It applies advanced optimized combustion process,which reduces running expence of continuous load.Its optimal designed damper,accurately matched supercharger and low speed cooling fan reduce the noise during running,and the emission index meets EU Stage-2 Standard.
The coupled alternator uses TELLHOW, MARATHON,ABB,STAMFORD brushless generator, applying integral salient pole rotor technique, Class H insulation, and steel sheet body, ensuring its advanced performance, steady and reliable operation.
Our controller adopts multi-functional control module,which is specific for diesel gen-set. It has Chinese and English operating interface, and automatic/manual control function and kinds of parameter display and protection function. There are different intellectual modules for option,realizing auto-start control,auto-start control + communication,auto-start control + communication + auto paralleling, ATS between mains and generator set,and so on.

Generator set technical parameter					Engine technical parameter
Generator set model	Prime power	Standby power	Dimensions	Weight	Engine model	Cylinders/ Arrangement	Bore	Stroke	Displacement	Engine fuel consumption rate	Lube volume	Coolant volume
	Prime power	Standby power	(L)×(W)×(H)	Weight			Bore	Stroke	Displacement	Engine fuel consumption rate	Lube volume	Coolant volume
	KW	KW	mm	Kg			mm	mm	L	g/kw·h	L	L
THLV69	69	76	2500×900×1625	1280	TAD550GE	4/L	108	130	4.76	231	13	20
THLV80	80	88	2500×900×1625	1300	TAD551GE	4/L	108	130	4.76	244	13	20
THLV104	104	114	2805×900×1625	1700	TAD750GE	6/L	108	130	7.15	219	20	20
THLV120	120	132	2805×900×1625	1800	TAD751GE	6/L	108	130	7.15	216	20	24
THLV145	145	160	2600×1275×1665	1800	TAD752GE	6/L	108	130	7.15	205	34	32
THLV160	160	180	2600×1275×1665	1860	TAD753GE	6/L	108	130	7.15	205	34	32
THLV200	200	220	2600×1275×1665	1950	TAD754GE	6/L	108	130	7.15	210	34	32
THLV260	260	286	3000×1275×1780	3000	TAD1351GE	6/L	131	158	12.78	202	36	44
THLV292	292	321	3000×1275×1780	3000	TAD1352GE	6/L	131	158	12.78	197	36	44
THLV300	300	330	3000×1275×1780	3000	TAD1354GE	6/L	131	158	12.78	196	36	44
THLV330	330	360	3000×1275×1780	3200	TAD1355GE	6/L	131	158	12.78	192	36	44
THLV370	370	407	3185×1235×1960	3500	TAD1650GE	6/L	144	165	16.12	202	38	60
THLV400	400	440	3185×1235×1960	3500	TAD1651GE	6/L	144	165	16.12	198	38	60
THLV480	480	529	3370×1460×1982	4000	TMD1652GE	6/L	144	165	16.12	210	38	118
THLV500	500	550	3370×1460×1982	4000	TMD1653GE	6/L	144	165	16.12	208	38	118
THLV520	520	574	3370×1460×1982	4100	TMD1653GE	6/L	144	165	16.12	208	38	118

Generator set technical parameter					Engine technical parameter
Generator set model	Prime power	Standby power	Dimensions	Weight	Engine model	Cylinders/ Arrangement	Bore	Stroke	Displacement	Engine fuel consumption rate	Lube volume	Coolant volume
	Prime power	Standby power	(L)×(W)×(H)	Weight			Bore	Stroke	Displacement	Engine fuel consumption rate	Lube volume	Coolant volume
	KW	KW	mm	Kg			mm	mm	L	g/kw·h	L	L
THLV76	76	83	2500×900×1625	1150	TAD550GE	4/L	108	130	4.76	231	13	20
THLV90	90	99	2200×1275×1665	1220	TAD551GE	4/L	108	130	4.76	244	13	20
THLV117	117	128	2600×1275×1665	1700	TAD750GE	6/L	108	130	7.15	219	13	20
THLV137	137	150	2600×1275×1665	1800	TAD751GE	6/L	108	130	7.15	216	20	24
THLV164	164	180	2690×1275×1665	1800	TAD752GE	6/L	108	130	7.15	205	34	38
THLV178	178	195	2690×1275×1665	1860	TAD753GE	6/L	108	130	7.15	205	34	38
THLV201	201	221	2690×1275×1665	1950	TAD754GE	6/L	108	130	16.12	210	29	32
THLV273	273	300	3065×1275×1780	3000	TAD1351GE	6/L	144	165	16.12	202	35	41
THLV320	320	352	3065×1275×1780	3000	TAD1352GE	6/L	144	165	16.12	198	35	44
THLV413	413	454	3350×1235×1960	3000	TAD1650GE	6/L	144	165	16.12	202	48	44

Normal condition: ambient temp:40℃,altitude:1000m,relative humidity:60%.
