Popular THSC（Cummins）50Hz/60Hz at home and abroad

THSC（Cummins）50Hz/60Hz

Home - Products - Diesel Generator Sets - Soundproof Generator Sets - THSC（Cummins）50Hz/60Hz

THSC（Cummins）50Hz/60Hz:

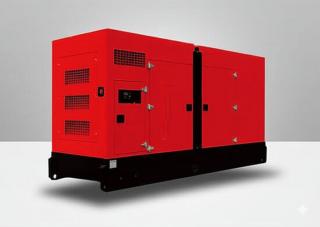

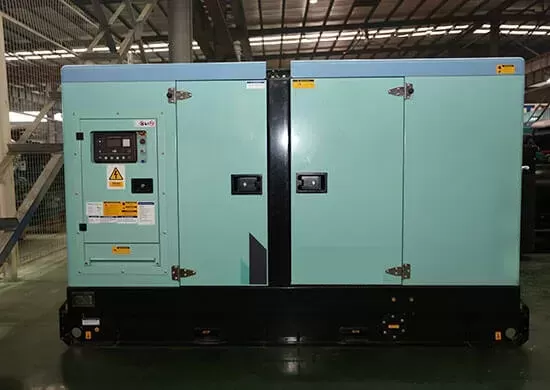

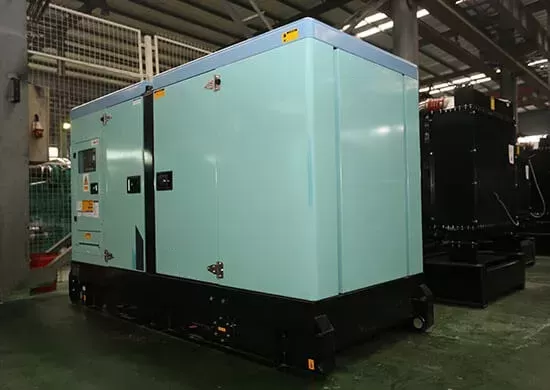

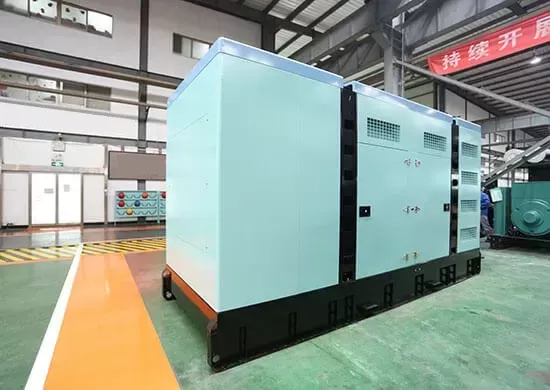

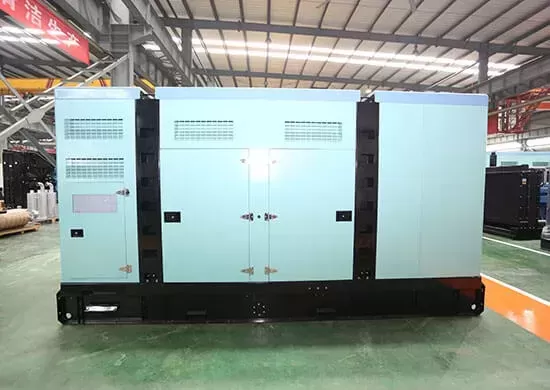

THSC Series Soundproof Generator Sets
Power Range: 20kW-500kW
Engine: Cummins (DCEC Series)
Alternator: MARATHON,ABB,STAMFORD,TELLHOW
Frequency: 50Hz/60Hz
The generator set comes with Dongfeng Cummins (DCEC series) and Chongqing Cummins (CCEC series) engine, the joint venture company in China with American Cummins. It is with excellent quality and reliable performance.
The generator set comes with Dongfeng Cummins (DCEC series) and Chongqing Cummins (CCEC series) engine, the joint venture company in China with American Cummins. It is with excellent quality and reliable performance.

sales@tellhowpower.com

Share products:

Description
50Hz
60Hz

The engine is manufactured by Dongfeng Cummins (DCEC) and Chongqing Cummins (CCEC), the joint ventures of American Cummins in China. It is with excellent quality and reliable performance.
The coupled alternator uses TELLHOW, MARATHON,ABB,STAMFROD brushless generator, applying integral salient pole rotor technique, Class H insulation, and steel sheet body, ensuring its advanced performance, steady and reliable operation.
Our controller adopts multi-functional control module,which is specific for diesel genset. It has Chinese and English operating interface, and automatic/manual control function.

Generator setmodel	Prime power	Standby power	Dimensions of genset (L)×(W)×(H)	Weight	Noise Level (no Load)		Engine model	Fuel tank volume	Control panel
Generator setmodel	kW	kW	mm	kg	1(m)	7(m)	Engine model	L	Control panel
THSC20P	20	22	2500×1020×1671	1201	70	62	4B3.9-G2	180L	A
THS30CP	30	33	2500×1020×1671	1265	70	63.5	4BT3.9-G2	180L	A
THSC45P	45	50	2650×1070×1671	1496	70	63.5	4BTA3.9-G2	180L	A
THSC50P	50	55	2650×1070×1671	1496	70	64	4BTA3.9-G11	180L	A
THSC60P	60	66	2650×1070×1671	1562	70	64	4BTA3.9-G11	180L	A
THSC68P	68	75	3250×1120×1782	1944	72	65	6BT5.9-G2	300L	B
THSC75P	75	82	3250×1120×1782	1988	72	65	6BT5.9-G2	300L	B
THSC80P	80	88	3250×1120×1782	1988	72	65.5	6BT5.9-G2	300L	B
THSC90P	90	100	3250×1120×1782	2067	75	68.5	6BTA5.9-G2	300L	B
THSC100P	100	110	3250×1120×1782	2038	75	68.5	6BTAA5.9-G2	300L	B
THSC120P	120	130	3550×1120×1880	2267	75	68.5	6BTAA5.9-G12	300L	B
THSC130P	130	140	3550×1120×1880	2494	76	68.9	6CTA8.3-G2	350L	B
THSC145P	156	160	3550×1120×1880	2520	76	69	6CTA8.3-G2	350L	B
THSC160P	160	176	3550×1220×1880	2524	76	69.5	6CTAA8.3-G2	350L	B
THSC200P	200	220	3650×1220×2102	2701	78	70.5	6LTAA8.9-G2	460L	B
THSC200P	200	220	4200×1370×2283	3977	79	70.5	NT855-GA	620L	B
THSC250P	250	285	4060×1520×2193	3835	80	71.5	MTAA11-G3	700L	B
THSC280P	280	300	4200×1370×2283	4074	80	72.5	NTA855-G2A	620L	B
THSC300P	300	330	4600×1470×2322	4248	83	73	NTAA855-G7	680L	B
THSC320P	320	350	4600×1470×2322	4268	83	73	NTAA855-G7A	680L	B
THSC360P	360	400	4600×1720×2502	5385	83	73	KTA19-G3	850L	B
THSC400P	400	440	4600×1720×2502	5385	83	74	KTA19-G3A	850L	B
THSC440P	440	500	4950×1920×2560	6035	83	74	KTAA19-G5	1200L	B
THSC460P	460	520	4950×1920×2560	6035	85	75	KTAA19-G6	1200L	B
THSC500P	500	550	4950×1920×2560	6035	85	75	KTAA19-G6A	1200L	B

Main technical parameter Normal condition:ambient temp:40℃,altitude:1000m,relative humidity:60%,Control panel:A-Wall mounting type,B-Vertical Type,C-Containerized Type

Generator set model	Prime power	Standby power	Dimensions of genset (L)×(W)×(H)	Weight	Noise Level (no Load)		Engine model	Fuel tank volume	Control panel
Generator set model	kW	kW	mm	kg	1(m)	7(m)	Engine model	L	Control panel
THSC22P	22	27	2500×1020×1671	1201	70	62	4B3.9-G2	180L	A
THSC27P	27	30	2500×1020×1671	1230	70	63.5	4BT3.9-G2	180L	A
THSC35P	35	40	2500×1020×1671	1265	70	63.5	4BT3.9-G2	180L	A
THSC52P	52	57	2650×1070×1671	1496	70	63.5	4BTA3.9-G2	180L	A
THSC68P	68	76	2650×1070×1671	1562	70	64	4BTA3.9-G11	180L	A
THSC84P	84	92	3250×1120×1782	1944	72	65	6BT5.9-G2	300L	B
THSC105P	105	116	3250×1120×1782	2067	75	68.5	6BTA5.9-G2	300L	B
THSC116P	116	125	3250×1120×1782	2038	75	68.5	6BTAA5.9-G2	300L	B
THSC132P	132	147	3550×1120×1880	2267	75	68.5	6BTAA5.9-G12	300L	B
THSC152P	152	167	3550×1120×1880	2494	76	68.9	6CTA8.3-G2	350L	B
THSC168P	168	184	3550×1120×1880	2524	76	69.5	6CTAA8.3-G2	350L	B
THSC208P	208	228	3650×1220×2102	2701	78	70.5	6LTAA8.9-G2	460L	B
THSC220S	/	220	4200×1370×2283	3977	80	71	NT855-GA	620L	B
THSC250P	250	275	4200×1370×2283	3835	80	71.5	NTA855-G1	620L	B
THSC275P	275	300	4200×1370×2283	4074	80	73	NTA855-G1B	620L	B
THSC315P	315	350	4200×1370×2283	4248	83	73	NTA855-G3	620L	B
THSC350P	350	400	4600×1720×2502	5385	83	73	KTA19-G2	850L	B
THSC410P	410	450	4600×1720×2502	5385	83	73	KTA19-G3	850L	B
THSC450P	450	500	4600×1720×2502	5385	83	74	KTA19-G3A	850L	B
THSC470P	470	550	4950×1920×2560	6035	83	74	KTAA19-G5	1200L	B
THSC600S	/	600	4950×1920×2560	6035	85	75	KTAA19-G6A	1200L	B

Normal condition:ambient temp:40℃,altitude:1000m,relative humidity:60%,Control panel:A-Wall mounting type,B-Vertical Type,C-Containerized Type
