Emergency Power Supply Vehicle

Home - Products - Mobile Generator Sets - Mobile Generator Sets - Emergency Power Supply Vehicle

Emergency Power Supply Vehicle:

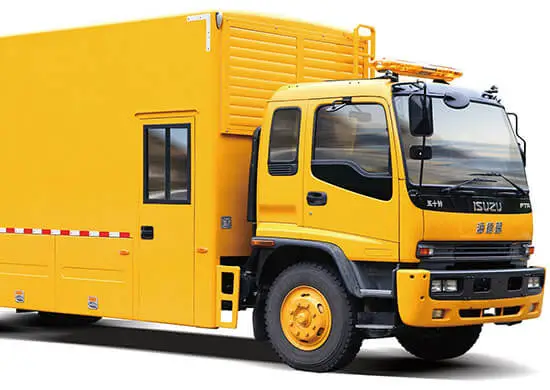

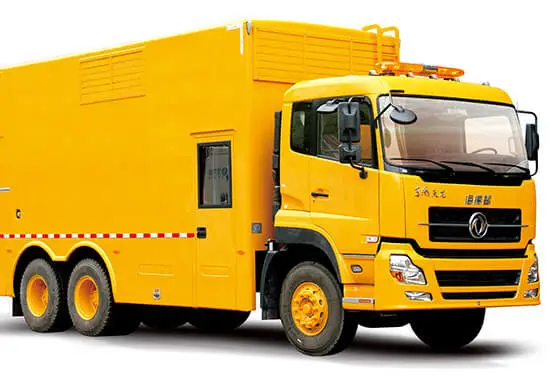

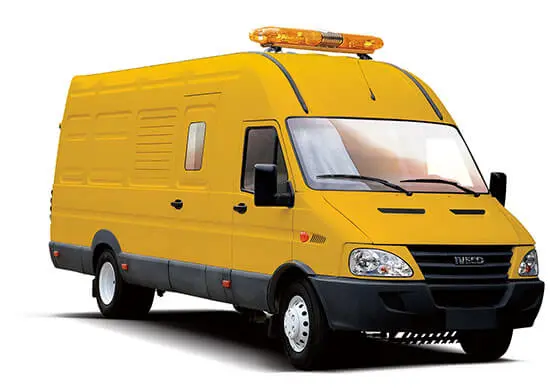

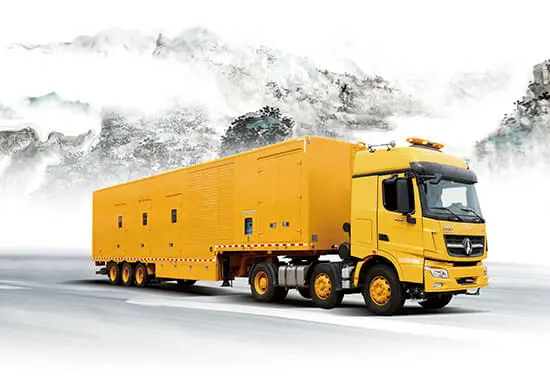

EMERGENCY POWER SUPPLY VEHICLE

The vehicle is suitable for emergency power supply of communication system, land-based power protection of aviation and aerospace, highway, tunnel engineering, industrial and mining enterprises, a live broadcast of radio and television, medical systems, and other power supply. Especially in disastrous accidents field, it can better reflect the important role of Emergency Power Supply Vehicle.
The vehicle is suitable for emergency power supply of communication system, land-based power protection of aviation and aerospace, highway, tunnel engineering, industrial and mining enterprises, a live broadcast of radio and television, medical systems, and other power supply. Especially in disastrous accidents field, it can better reflect the important role of Emergency Power Supply Vehicle.

Share products:

The vehicle uses the declared special vehicle second-class chassis, homemade environment-friendly noise insulation and reduction carriage. According to the function, carriage body is divided into operation room, gen-set room, air inlet and exhaust noise reduction room, cable winch room. The carriage body uses a variety of efficient composite insulation, sound-absorbing material, with sound-absorbing, vibration isolation, shock-absorbing and noise reduction function. Air inlet and exhaust and smoke exhausting device have anti rain, anti sand function. Vehicle configurations have secondary silencing system, lifting lamp, hydraulic supporting legs, electric cable winding / unwinding reel, air conditioner, lightning arrester, reversing radar surveillance system and so on.
●Meet the performance requirements of users, in line with national special vehicles and gen-set power supply standard.
●Control system adopts digital intelligent interface, built-in multi-level protection program and gen-set whole working process of implementation of safety and automation.
●The gen-set has the advantages of compact design, small size, light weight, the modular and standardization of design and manufacture system.
●Gen-set is highly automatic, simple operation, with unattended function.
●All-weather reliable starting, loading time is fast, easy maintenance.
●With starting function without external power (battery starting)
●Strong maneuverability, high reliability, good safety

Prime power less than 120kW
Chassis		According to customers requirement
Discharge standard		According to local emission level
Profile size of vehicle (mm)	Length	5980-8450
	Width	1880-2300
	Height	2550-3550
Number of axles		2
Total mass (kg)		4495-7800

Prime power range from 120 to 500kW
Chassis		According to customers requirement
Discharge standard		According to local emission level
Profile size of vehicle (mm)	Length	6470-9870
	Width	2200-2550
	Height	3150-3940
Number of axles		2
Total mass (kg)		1000-16000

Prime power range from 500 to 800kW
Chassis		According to customers requirement
Discharge standard		According to local emission level
Profile size of vehicle (mm)	Length	9850-10870
	Width	2500-2550
	Height	3750-3960
Number of axles		2
Total mass (kg)		18000-25000

Prime power more than 1000kW
Chassis		According to customers requirement
Discharge standard		According to local emission level
Profile size of vehicle (mm)	Length	11485-13590
	Width	2545-2550
	Height	3940-4000
Number of axles		3-4
Total mass (kg)		31000-40000
