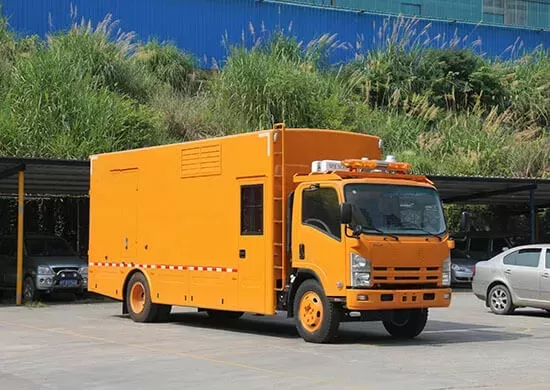

MOBILE TRANSFORMER VEHICLE

  • Mobile Transformer Vehicle is made up of chassis, insulated carriage, step transformer, medium voltage ring main unit, medium voltage input / output box, low voltage control cabinet, low voltage input / output box, cable, cable winch and so on, which is equipped with integrated control system of Mobile Transformer Vehicle, it can realize the function of vehicle wireless telemetry and remote control.

  • Mobile Transformer Vehicle has three functions: transform low voltage to high voltage, high voltage to low voltage, ring network power supply. It can also solve the problems of transformer maintenance, medium-voltage and low-voltage equipment power supply, and ring network power supply, which improves the reliability of power supply.

Contact Us:
Share products:
  • Main Parameters
  • Mobile Transformer Vehicle Standard Configuration

Mobile Transformer Vehicle has three functions: transform low voltage to high voltage, high voltage to low voltage, ring network power supply. It can also solve the problems of transformer maintenance, medium-voltage and low-voltage equipment power supply, and ring network power supply, which improves the reliability of power supply.

Discharge Standard

According to local emission level

Profile Size of the Whole Vehicle(mm)

Length

8450

Width

2200

Height

3250

Number of Axles

2

Total Mass (kg)

10055

Fuel Consumption(L/100km)

20

Brand of Transformer

Well-known brands at home and abroad

Capacity(kVA)

315-630

  • ● Class II Chassis (original air conditioning in cab)

  • ● Insulated Carriage

  • ● Step Transformer of Original Imported Or Domestically Produced(with temperature-control system)

  • ● Medium Voltage Ring Main Unit

  • ● Medium Voltage Input / Output Box

  • ● Low Voltage Control Cabinet

  • ● Low Voltage Input / Output Box

  • ● Grounding System And Cable Winch

  • ● Special Tool for Vehicle

  • ● Medium Voltage Cable And Hydraulic Cable Winch(powered by chassis PTO)

  • ● Low Voltage Cable And Hydraulic Cable Winch

  • ● Hydraulic Supporting Leg (powered by chassis PTO)

  • ● Special Paint For Joint Venture Brand

  • ● Dry-chemical Fire Extinguisher

  • ● Medium Voltage Power Connector(optional)

  • ● Low Voltage Power Connector (optional)

  • ● Wireless Remote Control System (optional)
