Drainage Vehicle

Home - Products - Mobile Generator Sets - Mobile Generator Sets - Drainage Vehicle

Drainage Vehicle:

Drainage Vehiclethe

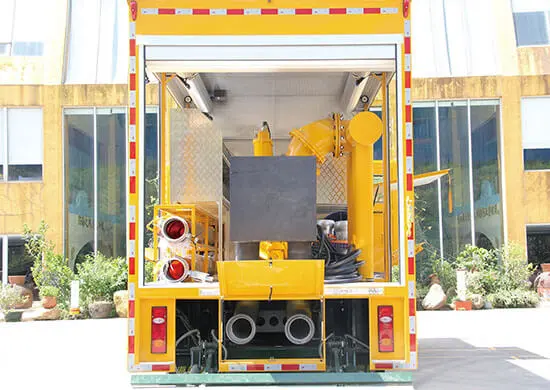

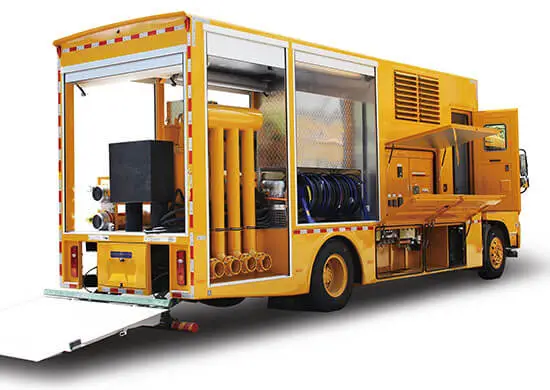

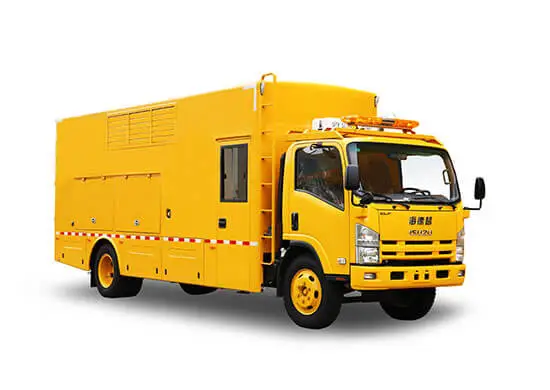

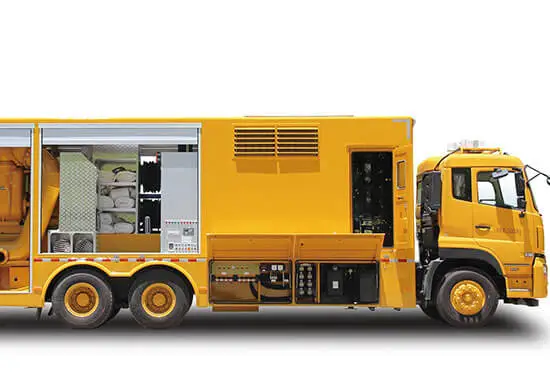

Drainage Vehicle (Mobile Pump Station) is composed of drainage rescue unit, power systems and auxiliary lighting, with the advantages of integration design, reasonable layout, high efficiency, high speed and lightweight, etc. Emergency operating radius is large (0-500m distance or farther), and 8 sets of water drainage units can be configured as per customers’ requirements (the max. water-output is 400m³/h per set, the lift is 6-12m). The vehicle is also equipped with vehicle-mounted power generation system, to resolve the rescue equipment’s dependencies on power system and act as a back-up power to supply external power and lighting..
Drainage Vehicle (Mobile Pump Station) is composed of drainage rescue unit, power systems and auxiliary lighting, with the advantages of integration design, reasonable layout, high efficiency, high speed and lightweight, etc. Emergency operating radius is large (0-500m distance or farther), and 8 sets of water drainage units can be configured as per customers’ requirements (the max. water-output is 400m³/h per set, the lift is 6-12m). The vehicle is also equipped with vehicle-mounted power generation system, to resolve the rescue equipment’s dependencies on power system and act as a back-up power to supply external power and lighting..

Share products:

Used in the urban waterlogging and underground parking drainage.
Used in repair and drainage of the municipal pipe network, and emergency drainage on the subway and tunnels.
Used in the flood control and drainage, emergency water diversion. Particularly the water rescues of the small reservoirs while the road damage.
Used in the flood control and drainage, emergency water diversion. Particularly the water rescues of the small reservoirs while the road damage.
Water intake for fire-fighting

Vehicle emergency drainage equipment is integrative and simple setting. The equipment can be quickly used separately in the special circumstances.
Fast emergency drainage response (in 10 min).
Core equipment of drainage pump has light weight (30kg), can without the power.
Widely use, and the equipment can be separated quickly, adapting to rough terrain, operating radius is large (0-500m distance or farther).
Power system can be configured as a separate emergency power and night lighting system.

Large flow portable water drainage emergency rescue system is a large flow portable submersible pump station combined with units of core equipment mobile pump, and has the advantages of flexible combination, convenience of use, multiple functions and quick long distance rescue.
Based on the advanced manufacturing technology, the weight of drainage pump is greatly reduced. The water hose is specially designed with large diameter quick connector and also light wear-resistant, which makes it possible for one person can finish the layout of emergency and drainage system. Onboard control system can ensure the power generation equipment and drainage pump system running safely and effectively, while electrical control system can control the pump to expand the application fields of drainage system under different conditions.

Equipment Name

Specification Parameter

Drainage System

Large flow portable submersible pump (15kW), 300-400m3/h per pump and 15-8m head; the weight of per pump is no more than 30kg.
Drainage pump is equipped with stainless steel (304) sieve, adequate flow area; DN200mm drain hose with adaptor and quick stainless steel clamp, the length of per pipe is 25m, and the weight is no more than 30kg.

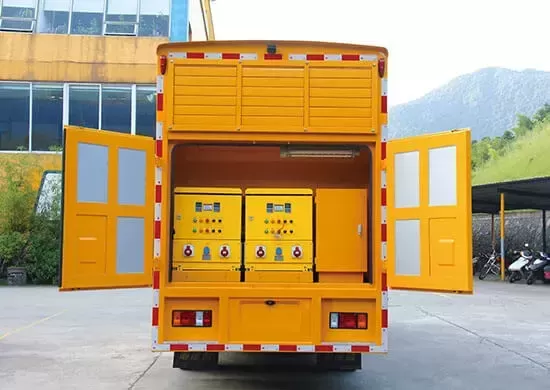

Every pump is equipped with a separated control system, and the control system has a digital visual operating interface to real time monitor running parameters, with the protection of current over-load, leakage, phase failure, over-voltage, under-voltage, under-frequency and motor over-heat.
The control system and the pump can operate normally under the commercial power.

Associated Equipment

Configuration per portable pump

Cables: 30m per cable; Extension cable: 20m per cable; with waterproof quick connector.
DN200mm drain hose, 25m per hose, totally 2 pcs (exhalent siphon can be equipped with the extension cable); every drain hose contains adaptor and quick stainless steel clamp.
