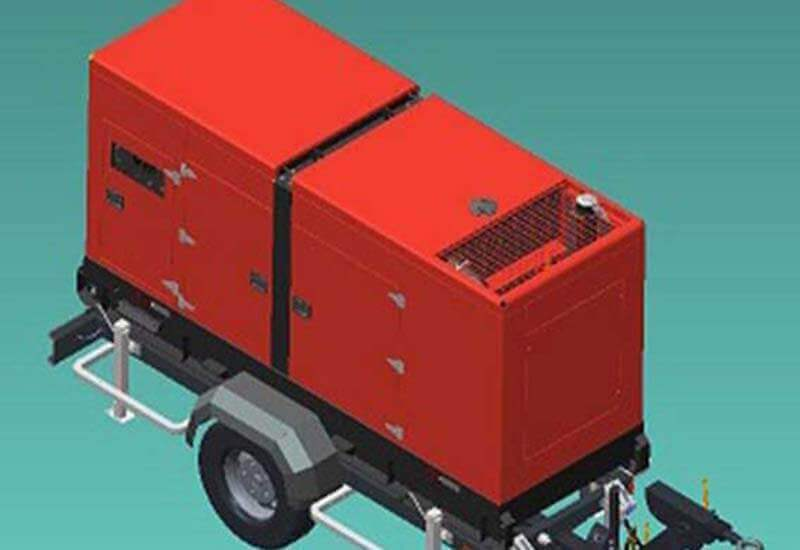

1. THT-trailer mounted genset is equipped with a rain-proof and soundproof housing, a complete air intake and exhaust system, as well as a water drainage system. This enables it to operate under all-weather conditions.
2. Doors can be opened at two sides of the generator set, which ensures convenient operation and maintenance. Upon request, the door can be locked to keep safe.
3. Users can freely choose either singe axle or double axle trailer to be used.
4. Built-in oil tank can assure 12 hours continuous operation of the genset.
5. Users can supervise the condition of the control panel at any time through the observable window.
6. According to customers'requirements, the genset can be equipped additionally with cable drum, cable jumper or other parts.

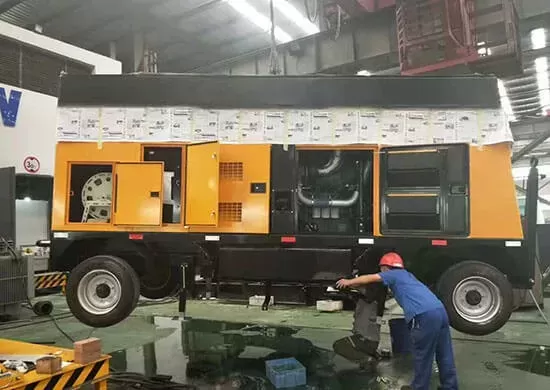

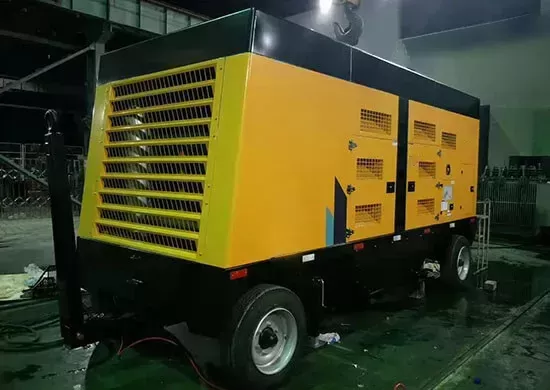

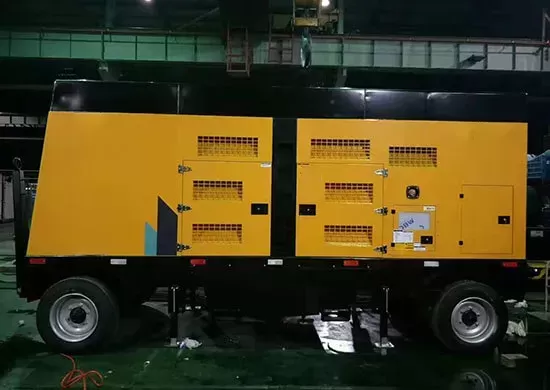

Split Type-Volvo Powered Trailer:
1. THT-trailer mounted genset is equipped with a rain-proof and soundproof housing, a complete air intake and exhaust system, as well as a water drainage system. This enables it to operate under all-weather conditions.2. Doors can be opened
Non-Road transport version
The standard of Non-Road transport version: Without Taillight and Taillight harness.
The chassis of Non-Road transport version: Without Adjustable height traction bar and Service brake system,etc.
Road transport version：
The total standard of Road transport version: Mechanical support leg, Guide pulley, Fender, Taillight and Taillight harness.

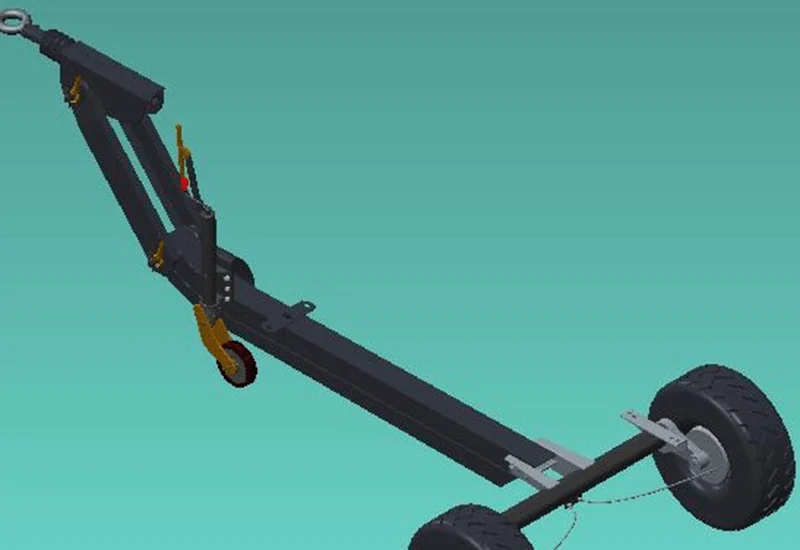

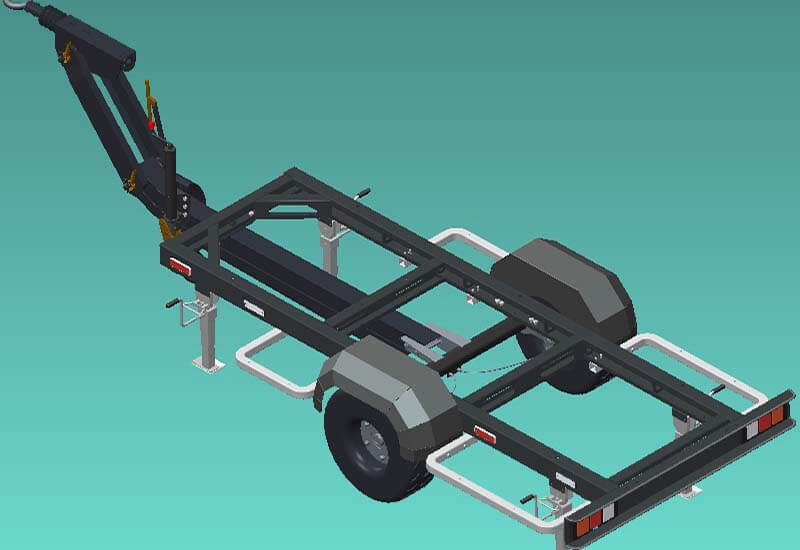

The chassis of Road transport version: Axle, Adjustable height traction bar, Parking brake system and Service brake system,etc.
Generator set model | Prime power | Engine model | Generator model | Dimensions of genset L*W*H | Fuel tank volume | Structure | Applicable | Trailer Model | |
KVA | KW | mm | L | ||||||
THTV68PM | 85 | 68 | TAD550GE | MP-70-4 | 4250X1850X2400 | 200 | B | Non-road transport version | YEA2500 |
THTV80PM | 100 | 80 | TAD551GE | MP-80-4 | 4250X1850X2400 | 200 | B | Non-road transport version | YEA2500 |
THTV104PM | 130 | 104 | TAD750GE | MP-104-4 | 4700X1850X2550 | 320 | B | Non-road transport version | YEA3000 |
THTV120PM | 150 | 120 | TAD751GE | MP-120-4 | 5100X1850X2550 | 420 | B | Non-road transport version | YEA3500 |
THTV150PM | 188 | 150 | TAD752GE | MP-160-4A | 5250X1900X2750 | 460 | B | Non-road transport version | YEA3500 |
THTV160PM | 200 | 160 | TAD753GE | MP-160-4A | 5250X1900X2750 | 460 | B | Non-road transport version | YEA3500 |
THTV200PM | 250 | 200 | TAD754GE | MP-200-4A | 5250X1900X2750 | 460 | B | Non-road transport version | YEA3500 |
Generator set model | Prime power | Engine model | Generator model | Dimensions of genset L*W*H | Fuel tank volume | Structure | Applicable | Trailer Model | |
KVA | KW | mm | L | ||||||
THTV68PM | 85 | 68 | TAD550GE | MP-70-4 | 4250X1850X2400 | 200 | B | Road transport version | EA2500 |
THTV80PM | 100 | 80 | TAD551GE | MP-80-4 | 4250X1850X2400 | 200 | B | Road transport version | EA2500 |
THTV104PM | 130 | 104 | TAD750GE | MP-104-4 | 4700X1850X2550 | 310 | B | Road transport version | EA3000 |
THTV120PM | 150 | 120 | TAD751GE | MP-120-4 | 5100X1850X2550 | 420 | B | Road transport version | EA3500 |
THTV150PM | 188 | 150 | TAD752GE | MP-160-4A | 5250X1900X2750 | 460 | B | Road transport version | EA3500 |
THTV160PM | 200 | 160 | TAD753GE | MP-160-4A | 5250X1900X2750 | 460 | B | Road transport version | EA3500 |
THTV200PM | 250 | 200 | TAD754GE | MP-200-4A | 5250X1900X2750 | 460 | B | Road transport version | EA3500 |
