THLC DCEC Series Generator Sets
Power Range: 20kW-208kW
Engine: Cummins (DCEC Series)
Alternator: MARATHON,ABB,STAMFORD,TELLHOW
Frequency: 50Hz/60Hz -
The generator set comes with Dongfeng Cummins (DCEC series) engine, the joint venture company in China with American Cummins. DCEC series engine is with excellent quality and reliable performance.
-
The generator set comes with Dongfeng Cummins (DCEC series) engine, the joint venture company in China with American Cummins. DCEC series engine is with excellent quality and reliable performance.

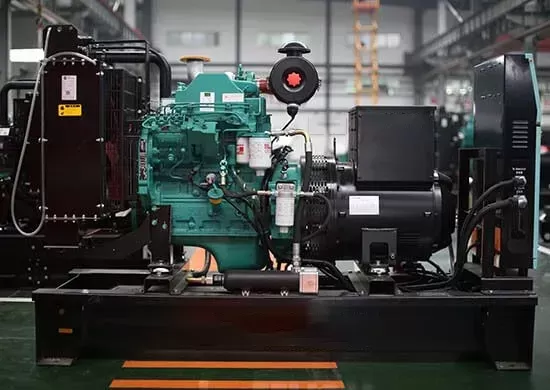

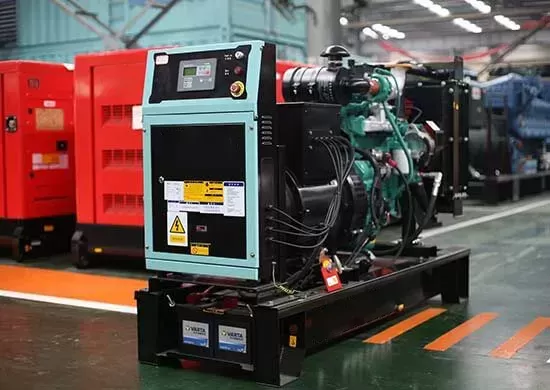

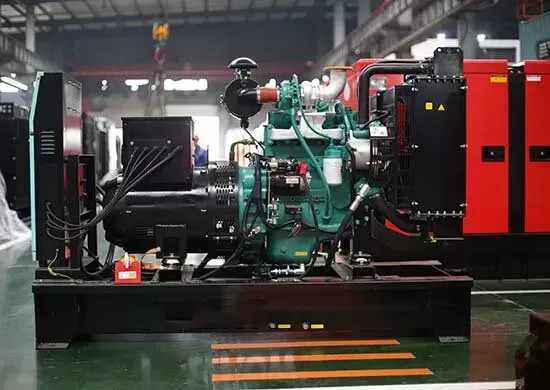

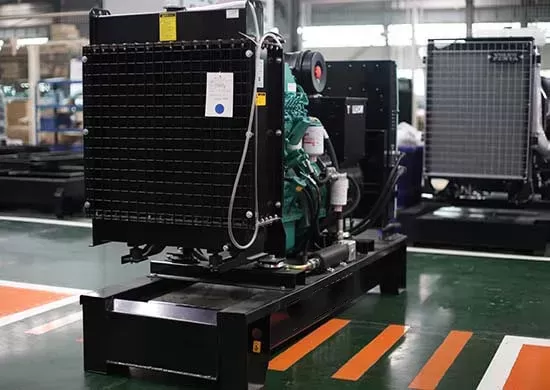

THLCDCEC（Cummins）50Hz/60Hz
THLCDCEC（Cummins）50Hz/60Hz:
Contact Us:
-
The engine is manufactured by Dongfeng Cummins (DCEC), the joint ventures of American Cummins in China. It is with excellent quality and reliable performance.
-
The coupled alternator uses TELLHOW, MARATHON,ABB,STAMFROD brushless generator, applying integral salient pole rotor technique, Class H insulation, and steel sheet body, ensuring its advanced performance, steady and reliable operation.
-
Our controller adopts multi-functional control module,which is specific for diesel gen-set. It has Chinese and English operating interface, and automatic/manual control function and kinds of parameter display and protection function.There are different intellectual modules for option,realizing auto-start control,auto-start control + communication,auto-start control + communication + auto paralleling, ATS between mains and generator set,and so on.
|
Generator set technical parameter |
Engine technical parameter |
|||||||||||
|
Generator set model |
Prime power |
Standby power |
Dimensions |
Weight |
Engine model |
Cylinders/ |
Bore |
Stroke |
Displacement |
Engine fuel |
Lube volume |
Coolant volume |
|
(L)×(W)×(H) |
||||||||||||
|
KW |
KW |
mm |
Kg |
mm |
mm |
L |
g/kw·h |
L |
L |
|||
|
THLC20 |
20 |
22 |
1905×730×1415 |
622 |
4B3.9-G |
4/L |
102 |
120 |
3.9 |
229 |
11 |
19 |
|
THLC30 |
30 |
33 |
1946×730×1405 |
697 |
4BT3.9-G |
4/L |
102 |
120 |
3.9 |
214 |
11 |
19 |
|
THLC45 |
45 |
50 |
2100×730×1431 |
793 |
4BTA3.9-G |
4/L |
102 |
120 |
3.9 |
216 |
11 |
22 |
|
THLC50 |
50 |
55 |
2100×730×1431 |
943 |
4BTA3.9-G11 |
4/L |
102 |
120 |
3.9 |
208 |
11 |
22 |
|
THLC60 |
60 |
66 |
2100×730×1431 |
995 |
4BTA3.9-G11 |
4/L |
102 |
120 |
3.9 |
208 |
11 |
22 |
|
THLC68 |
68 |
75 |
2420×805×1413 |
1015 |
6BT5.9-G |
6/L |
102 |
120 |
5.9 |
214 |
16 |
22 |
|
THLC75 |
75 |
83 |
2415×807×1412 |
1015 |
6BT5.9-G |
6/L |
102 |
120 |
5.9 |
214 |
16 |
22 |
|
THLC80 |
80 |
88 |
2415×807×1412 |
1056 |
6BT5.9-G |
6/L |
102 |
120 |
5.9 |
214 |
16 |
22 |
|
THLC90 |
90 |
100 |
2415×807×1412 |
1160 |
6BTA5.9-G |
6/L |
102 |
120 |
5.9 |
211 |
16 |
26 |
|
THLC100 |
100 |
110 |
2400×910×1454 |
1150 |
6BTAA5.9-G |
6/L |
102 |
120 |
5.9 |
208 |
16 |
26 |
|
THLC120 |
120 |
130 |
2400×910×1454 |
1610 |
6BTAA5.9-G12 |
6/L |
102 |
120 |
5.9 |
208 |
16 |
26 |
|
THLC130 |
130 |
140 |
2564×865×1642 |
1650 |
6CTA8.3-G |
6/L |
114 |
135 |
8.3 |
210 |
28 |
31 |
|
THLC145 |
145 |
160 |
2564×865×1642 |
1700 |
6CTA8.3-G |
6/L |
114 |
135 |
8.3 |
210 |
28 |
31 |
|
THLC160 |
160 |
176 |
2500×1073×1640 |
1710 |
6CTAA8.3-G |
6/L |
114 |
135 |
8.3 |
205 |
24 |
34 |
|
THLC200 |
200 |
220 |
2563×1128×1715 |
1890 |
6LTAA8.9-G |
6/L |
114 |
145 |
8.3 |
197 |
28 |
34 |
|
Generator set technical parameter |
Engine technical parameter |
|||||||||||
|
Generator set model |
Prime power |
Standby power |
Dimensions |
Weight |
Engine model |
Cylinders/ |
Bore |
Stroke |
Displacement |
Engine fuel |
Lube volume |
Coolant volume |
|
(L)×(W)×(H) |
||||||||||||
|
KW |
KW |
mm |
Kg |
mm |
mm |
L |
g/kw·h |
L |
L |
|||
|
THLC22 |
22 |
24 |
1910×730×1415 |
622 |
4B3.9-G |
4/L |
102 |
120 |
3.9 |
229 |
11 |
18 |
|
THLC27 |
27 |
30 |
1910×730×1415 |
697 |
4BT3.9-G |
4/L |
102 |
120 |
3.9 |
214 |
11 |
18 |
|
THLC35 |
35 |
40 |
1910×730×1415 |
793 |
4BT3.9-G |
4/L |
102 |
120 |
3.9 |
214 |
11 |
18 |
|
THLC52 |
52 |
57 |
1960×730×1415 |
1000 |
4BTA3.9-G |
4/L |
102 |
120 |
3.9 |
216 |
11 |
18 |
|
THLC68 |
68 |
76 |
2400×730×1415 |
1015 |
4BTA3.9-G11 |
4/L |
102 |
120 |
3.9 |
208 |
11 |
18 |
|
THLC84 |
84 |
92 |
2400×730×1415 |
1056 |
6BT5.9-G |
6/L |
102 |
120 |
5.9 |
214 |
16 |
29 |
|
THLC105 |
105 |
116 |
2630×855×1515 |
1160 |
6BTA5.9-G |
6/L |
102 |
120 |
5.9 |
211 |
16 |
29 |
|
THLC116 |
116 |
125 |
2630×855×1515 |
1150 |
6BTAA5.9-G |
6/L |
102 |
120 |
5.9 |
208 |
16 |
29 |
|
THLC132 |
132 |
147 |
2600×865×1650 |
1610 |
6BTAA5.9-G12 |
6/L |
102 |
120 |
5.9 |
210 |
16 |
29 |
|
THLC152 |
152 |
167 |
2400×1065×1625 |
1700 |
6CTA8.3-G |
6/L |
114 |
135 |
8.3 |
210 |
24 |
30 |
|
THLC168 |
168 |
184 |
2560×1080×1650 |
1710 |
6CTAA8.3-G |
6/L |
114 |
135 |
8.3 |
205 |
24 |
30 |
|
THLC208 |
208 |
228 |
2600×1130×1715 |
1890 |
6LTAA8.9-G |
6/L |
114 |
135 |
8.9 |
197 |
28 |
35 |
