THLC CCEC Series Generator Sets
Power Range: 200kW-1250kW
Engine: Cummins (CCEC Series)
Alternator: MARATHON,ABB,STAMFORD,TELLHOW
Frequency: 50Hz/60Hz -

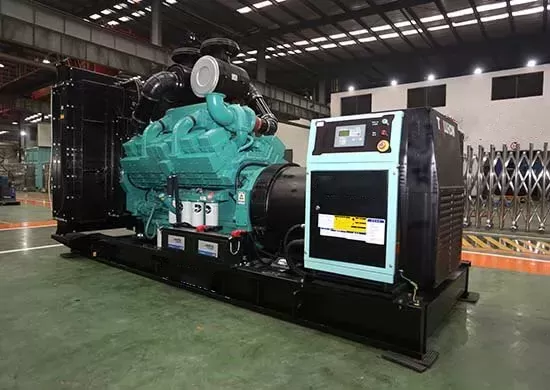

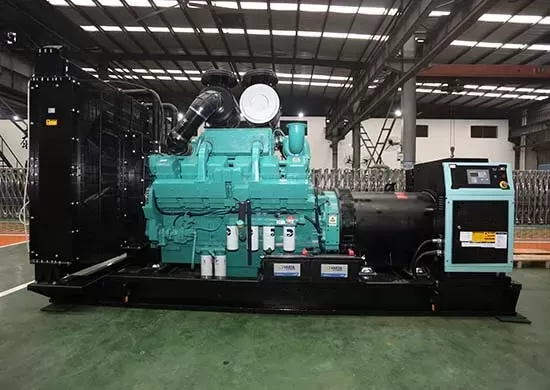

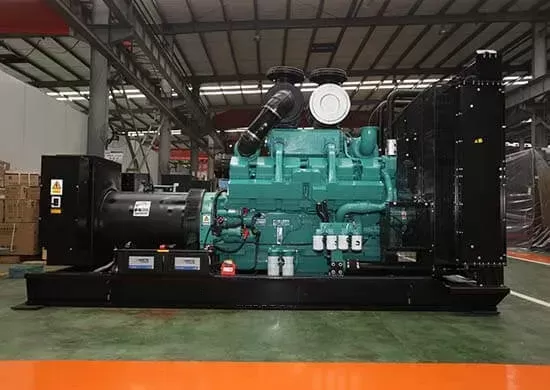

The generator set comes with Chongqing Cummins (CCEC series) engine, the joint venture company in China with American Cummins. CCEC series engine is with excellent quality and reliable performance.
-
The generator set comes with Chongqing Cummins (CCEC series) engine, the joint venture company in China with American Cummins. CCEC series engine is with excellent quality and reliable performance.
THLCCCEC（Cummins）50Hz/60Hz
THLCCCEC（Cummins）50Hz/60Hz:
Contact Us:
-
The engine is manufactured by Chongqing Cummins (CCEC), the joint ventures of American Cummins in China. It is with excellent quality and reliable performance.
-
The coupled alternator uses TELLHOW, MARATHON,ABB,STAMFROD brushless generator, applying integral salient pole rotor technique, Class H insulation, and steel sheet body, ensuring its advanced performance, steady and reliable operation.
-
Our controller adopts multi-functional control module,which is specific for diesel gen-set. It has Chinese and English operating interface, and automatic/manual control function and kinds of parameter display and protection function.There are different intellectual modules for option,realizing auto-start control,auto-start control + communication,auto-start control + communication + auto paralleling, ATS between mains and generator set,and so on.
|
Generator set technical parameter |
Engine technical parameter |
|||||||||||
|
Generator set model |
Prime power |
Standby power |
Dimensions |
Weight |
Engine model |
Cylinders/ |
Bore |
Stroke |
Displacement |
Engine fuel |
Lube volume |
Coolant volume |
|
(L)×(W)×(H) |
||||||||||||
|
KW |
KW |
mm |
Kg |
mm |
mm |
L |
g/kw·h |
L |
L |
|||
|
THLC200 |
200 |
220 |
3000×1235×1806 |
2630 |
NT855-GA |
6/L |
140 |
152 |
14 |
200 |
39 |
69 |
|
THLC250 |
250 |
275 |
2860×1275×1520 |
2630 |
MTAA11-G3 |
6/L |
125 |
147 |
10.8 |
197 |
37 |
55 |
|
THLC280 |
280 |
300 |
3020×1279×1742 |
3200 |
NAT855-G2A |
6/L |
140 |
152 |
14 |
200 |
39 |
69 |
|
THLC300 |
300 |
330 |
3250×1335×1830 |
3200 |
NTAA855-G7 |
6/L |
140 |
152 |
14 |
194 |
39 |
81 |
|
THLC320 |
320 |
350 |
3250×1335×1830 |
3220 |
NTAA855-G7A |
6/L |
140 |
152 |
14 |
201 |
39 |
81 |
|
THLC360 |
360 |
400 |
3300×1522×1946 |
4050 |
KTA19-G3 |
6/L |
159 |
159 |
18.9 |
204 |
50 |
98 |
|
THLC400 |
400 |
440 |
3300×1522×1946 |
4100 |
KTA19-G3A |
6/L |
159 |
159 |
18.9 |
202 |
50 |
98 |
|
THLC440 |
440 |
450 |
3550×1590×2120 |
4400 |
KTAA19-G5 |
6/L |
159 |
159 |
18.9 |
202 |
50 |
108 |
|
THLC460 |
460 |
406 |
3700×1500×1971 |
4450 |
KTAA19-G6 |
6/L |
159 |
159 |
18.9 |
204 |
50 |
108 |
|
THLC500 |
500 |
550 |
3700×1500×1971 |
4500 |
KTAA19-G6A |
6/L |
159 |
159 |
18.9 |
201 |
50 |
108 |
|
THLC600 |
600 |
660 |
4308×2028×2412 |
6900 |
KTA38-G2 |
12/V |
159 |
159 |
37.8 |
200 |
135 |
218 |
|
THLC640 |
640 |
704 |
4300×2030×2415 |
7150 |
KTA38-G2B |
12/V |
159 |
159 |
37.8 |
202 |
135 |
223 |
|
THLC730 |
730 |
800 |
4300×2030×2415 |
7200 |
KTA38-G2A |
12/V |
159 |
159 |
37.8 |
202 |
135 |
223 |
|
THLC800 |
800 |
880 |
4456×2028×2412 |
7650 |
KTA38-G55 |
12/V |
159 |
159 |
37.8 |
202 |
135 |
223 |
|
THLC900 |
900 |
1000 |
4400×2030×2245 |
8000 |
KTA38-G9 |
12/V |
159 |
159 |
37.8 |
202 |
135 |
223 |
|
THLC1000 |
1000 |
1100 |
5074×2010×2341 |
9200 |
KTA50-G3 |
16/V |
159 |
159 |
50.8 |
201 |
177 |
280 |
|
THLC1100 |
1100 |
1210 |
5450×2020×2412 |
12000 |
KTA50-G8 |
16/V |
159 |
159 |
50.8 |
201 |
205 |
361 |
|
THLC1200 |
1200 |
1320 |
5450×2020×2412 |
12000 |
KTA50-GS8 |
16/V |
159 |
159 |
50.8 |
201 |
205 |
361 |
|
Generator set technical parameter |
Engine technical parameter |
|||||||||||
|
Generator set model |
Prime power |
Standby power |
Dimensions |
Weight |
Engine model |
Cylinders/ |
Bore |
Stroke |
Displacement |
Engine fuel |
Lube volume |
Coolant volume |
|
(L)×(W)×(H) |
||||||||||||
|
KW |
KW |
mm |
Kg |
mm |
mm |
L |
g/kw·h |
L |
L |
|||
|
THLC250 |
250 |
275 |
3000×1280×1900 |
3200 |
NTA855-G1 |
6/L |
140 |
152 |
14 |
197 |
39 |
53 |
|
THLC275 |
275 |
300 |
3000×1280×1900 |
3450 |
NTA855-G18 |
6/L |
140 |
152 |
14 |
200 |
39 |
53 |
|
THLC315 |
315 |
350 |
3000×1280×1900 |
3550 |
NTA855-G3 |
6/L |
140 |
152 |
14 |
194 |
36.7 |
53 |
|
THLC350 |
350 |
400 |
3370×1525×2030 |
3680 |
KTA19-G2 |
6/L |
159 |
159 |
19 |
204 |
50 |
53 |
|
THLC410 |
410 |
450 |
3370×1525×2030 |
4050 |
KTA19-G3 |
6/L |
159 |
159 |
19 |
204 |
50 |
53 |
|
THLC450 |
450 |
500 |
3370×1525×2030 |
4800 |
KTA19-G3A |
6/L |
159 |
159 |
19 |
204 |
50 |
80 |
|
THLC470 |
470 |
550 |
3540×1565×2160 |
5300 |
KTAA19-G5 |
6/L |
159 |
159 |
19 |
204 |
50 |
80 |
|
THLC550 |
550 |
600 |
3700×1500×1971 |
5300 |
KTAA19-G6A |
6/L |
159 |
159 |
19 |
204 |
50 |
108 |
|
THLC620 |
620 |
680 |
4400×2030×2415 |
6900 |
KT38-G |
12/V |
159 |
159 |
37.8 |
208 |
135 |
223 |
|
THLC725 |
725 |
800 |
4400×2030×2415 |
6900 |
KT38-G2 |
12/V |
159 |
159 |
37.8 |
200 |
135 |
223 |
|
THLC800 |
800 |
900 |
4400×2030×2415 |
7200 |
KT38-G2A |
12/V |
159 |
159 |
37.8 |
200 |
135 |
223 |
|
THLC900 |
900 |
1000 |
4540×2030×2250 |
7650 |
KT38-G4 |
12/V |
159 |
159 |
37.8 |
202 |
135 |
223 |
|
THLC1000 |
1000 |
1100 |
4400×2030×2240 |
8000 |
KT38-G9 |
12/V |
159 |
159 |
37.8 |
202 |
135 |
223 |
|
THLC1100 |
1100 |
1260 |
5100×2010×2340 |
9200 |
KTA50-G3 |
16/V |
159 |
159 |
50.8 |
201 |
200 |
330 |
|
THLC1250 |
1250 |
1500 |
5500×2010×2530 |
12000 |
KTA50-G9 |
16/V |
159 |
159 |
50.8 |
201 |
200 |
330 |
Normal condition: ambient temp:40℃,altitude:1000m,relative humidity:60%.
