THLP（Perkins）50Hz/60Hz:

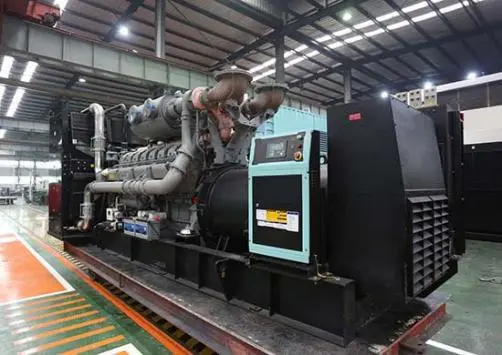

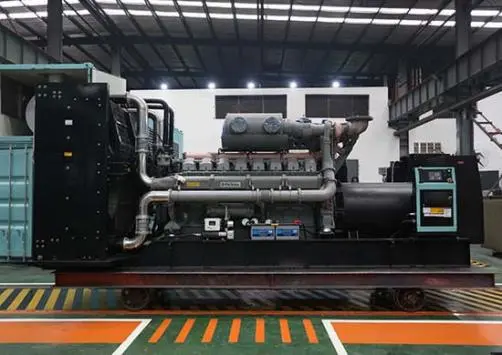

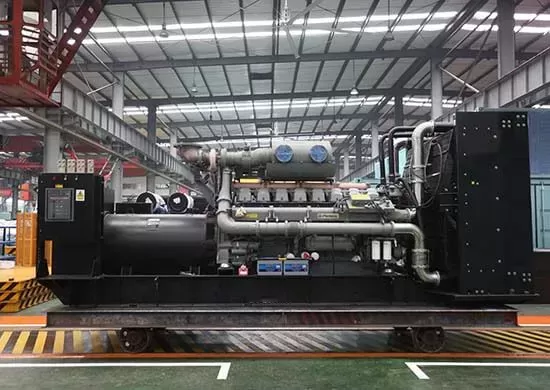

THLP Perkins Powered Generator Sets
Power Range: 7kW-1800kW
Engine: Perkins
Alternator: MARATHON,ABB,STAMFORD,TELLHOW
Frequency: 50Hz/60Hz
The generator set comes with Perkins (UK) engine, with quick and reliable cold start performance, applying advanced technologies, optimized combustion process, making low fuel consumption and low noise, which is energy-saving and environment protective.

sales@tellhowpower.com

Share products:

Description
50Hz
60Hz

The generator set comes with Perkins (UK) engine, with quick and reliable cold start performance, applying advanced technologies, optimized combustion process, making low fuel consumption and low noise, which is energy-saving and environment protective.
We choose Perkins(UK) engine, with quick and reliable cold start performance. It applies advanced technologies,optimized combustion process,making low fuel consumption and low noise,which is energy-saving and environment protective.
The coupled alternator uses TELLHOW, MARATHON,ABB,STAMFROD brushless generator, applying integral salient pole rotor technique, Class H insulation, and steel sheet body, ensuring its advanced performance, steady and reliable operation.
Our controller adopts multi-functional control module,which is specific for diesel gen-set. It has Chinese and English operating interface, and automatic/manual control function and kinds of parameter display and protection function. There are different intellectual modules for option,realizing auto-start control,auto-start control + communication,auto-start control + communication + auto paralleling, ATS between mains and generator set,and so on.

Generator set technical parameter					Engine technical parameter
Generator set model	Prime power	Standby power	Dimensions	Weight	Engine model	Cylinders/ Arrangement	Bore	Stroke	Displacement	Engine fuel consumption rate	Lube volume	Coolant volume
	Prime power	Standby power	(L)×(W)×(H)	Weight			Bore	Stroke	Displacement	Engine fuel consumption rate	Lube volume	Coolant volume
	KW	KW	mm	Kg			mm	mm	L	g/kw·h	L	L
THLP7	7	8	1360×670×1313	550	403A-11G1	3/L	77	81	1.131	252	5	5
THLP10	10	11	1420×670×1313	550	403A-15G1	3/L	84	90	1.496	264	6	6
THLP16	16	18	1500×670×1313	550	404A-22G1	4/L	84	100	2.216	237	11	7
THLP24	24	26	1670×750×1354	780	1103A-33G	3/L	105	127	3.3	214	8	10
THLP36	36	40	1790×750×1378	800	1103A-33TG1	3/L	105	127	3.3	215	8	10
THLP48	48	63	1880×750×1378	800	1103A-33TG2	3/L	105	127	3.3	215	8	10
THLP50	50	50	1960×750×1354	1000	1104A-44TG1	4/L	105	127	4.4	211	8	13
THLP64	64	70	2020×750×1364	1000	1104A-44TG2	4/L	105	127	4.4	216	8	13
THLP80	80	88	2120×800×1380	1100	1106C-44TAG2	4/L	105	127	4.4	205	8	13
THLP108	108	120	2540×800×1380	1550	1106A-70TG1	6/L	105	135	7.01	205	17	21
THLP120	120	132	2380×980×1520	1550	1106A-70TAG2	6/L	105	135	7.01	205	17	21
THLP140	140	154	2440×980×1520	1600	1106A-70TAG3	6/L	105	135	7.01	205	17	21
THLP160	160	176	2440×980×1520	1630	1106A-70TAG4	6/L	105	135	7.01	205	17	21
THLP180	180	198	2565×1087×1680	2000	1506A-E88TAG2	6/L	112	149	8.8	217	41	30
THLP200	200	220	2565×1087×1680	2050	1506A-E88TAG3	6/L	112	149	8.8	216	41	30
THLP280	280	308	2960×1245×2000	3000	2206C-E13TAG2	6/L	130	157	12.5	209	40	51
THLP320	320	352	3000×1245×2000	3100	2206C-E13TAG3	6/L	130	157	12.5	206	40	51
THLP360	360	396	3300×1245×1966	3100	2506C-E15TAG1	6/L	137	171	15	216	62	58
THLP400	400	440	3300×1245×1966	3200	2506C-E15TAG2	6/L	137	171	15	211	62	58
THLP520	520	560	3265×1536×2185	4000	2806A-E18TAG2	6/L	145	183	18.13	202	62	61
THLP600	600	660	3800×1706×2177	5500	4006-23TAG2A	6/L	160	190	23	209	113	120
THLP640	640	700	3800×1706×2177	6000	4006-23TAG3A	6/L	160	190	23	210	113	120
THLP720	720	800	4650×2046×2320	7050	4008TAG1A	8/L	160	190	30.6	206	153	226
THLP800	800	880	4650×2046×2320	8000	4008TAG2A	8/L	160	190	30.6	206	153	223
THLP1000	1000	1100	4700×1970×2410	10000	4012-46TMG2A	12/V	160	190	45.8	212	159	177
THLP1100	1100	1200	4900×2182×2485	10600	4012-46TAG1A	12/V	160	190	45.8	212	177	265
THLP1200	1200	1320	4900×2182×2485	10600	4012-46TAG2A	12/V	160	190	45.8	207	177	265
THLP1320	1320	1450	5000×2164×2545	11500	4012-46TAG3A	12/V	160	190	45.8	212	177	265
THLP1480	1480	1600	5914×2135×2575	14600	4016TAG1A	16/V	160	190	61.12	205	213	357
THLP1600	1600	1800	6069×2135×2575	14600	4016TAG2A	16/V	160	190	61.12	208	213	357
THLP1800	1800	2000	6153×2250×2723	16000	4016-61TRG3	16/V	160	190	61.12	210	213	477

Generator set technical parameter					Engine technical parameter
Generator set model	Prime power	Standby power	Dimensions	Weight	Engine model	Cylinders/ Arrangement	Bore	Stroke	Displacement	Engine fuel consumption rate	Lube volume	Coolant volume
	Prime power	Standby power	(L)×(W)×(H)	Weight			Bore	Stroke	Displacement	Engine fuel consumption rate	Lube volume	Coolant volume
	KW	KW	mm	kg			mm	mm	L	g/kw·h	L	L
THLP9	9	10	1300×750×1110	550	403D-11G	3/L	77	81	1.131	248	5	5
THLP12	12	14	1300×750×1110	550	403D-15G	3/L	84	90	1.496	247	6	6
THLP18	18	20	1300×750×1110	550	404D-22G	4/L	84	100	2.216	233	11	7
THLP61	61	67	1800×800×1300	1000	1104A-44TG1	4/L	105	127	4.4	214	8	13
THLP72	72	80	1800×800×1300	1000	1104C-44TAG1	4/L	105	127	4.4	205	8	13
THLP90	90	100	1800×800×1300	1000	1104C-44TAG2	4/L	105	127	4.4	214	8	13
THLP122	122	134	2500×1100×1480	1500	1106A-TG1	6/L	105	135	7.01	203	17	21
THLP135	135	150	2500×1100×1480	1550	1106A-70TAG2	6/L	105	135	7.01	205	17	21
THLP158	158	174	2500×1100×1480	1600	1106A-70TAG3	6/L	105	135	7.01	205	17	21
THLP196	196	216	2510×930×1760	1700	1506A-E88TAG1	6/L	112	149	7.01	214	39	30
THLP225	225	248	2610×1100×1850	2000	1506A-E88TAG3	6/L	112	149	8.8	199	39	30
THLP250	250	275	2610×1100×1850	2100	1506A-E88TAG4	6/L	112	149	8.8	199	39	30
THLP270	270	297	2610×1100×1850	2200	1506A-E88TAG5	6/L	112	149	8.8	201	39	30
THLP320	320	350	3200×1180×2000	3100	2206A-E13TAG5	6/L	130	157	12.5	201	40	51
THLP350	350	385	3200×1180×2000	3100	2206A-E13TAG6	6/L	130	157	12.5	202	40	51
THLP410	410	450	3250×1310×1940	3200	2506A-E15TAG3	6/L	137	171	12.5	196	62	58
THLP455	455	500	3250×1310×1940	3210	2506A-E15TAG4	6/L	137	171	12.5	196	62	58
THLP500	500	550	3360×1535×2040	3900	2806A-E18TAG1A	6/L	145	183	18.3	203	62	61
THLP545	545	600	3360×1535×2040	4000	2806A-E18TAG3	6/L	145	183	18.3	209	62	61
THLP600	600	660	4280×1710×2365	5500	4006-23TAG2A	6/L	160	190	23	209	113	120
THLP800	800	860	4800×2046×2320	8000	4008TAG2	8/L	160	190	30.6	206	153	226
THLP1000	1000	1100	4850×1970×2410	10000	4012-46TWG2A	12/V	160	190	45.8	217	159	177
THLP1200	1200	1320	4985×2192×2480	10600	4012-46TWG2A	12/V	160	190	45.8	207	177	265
